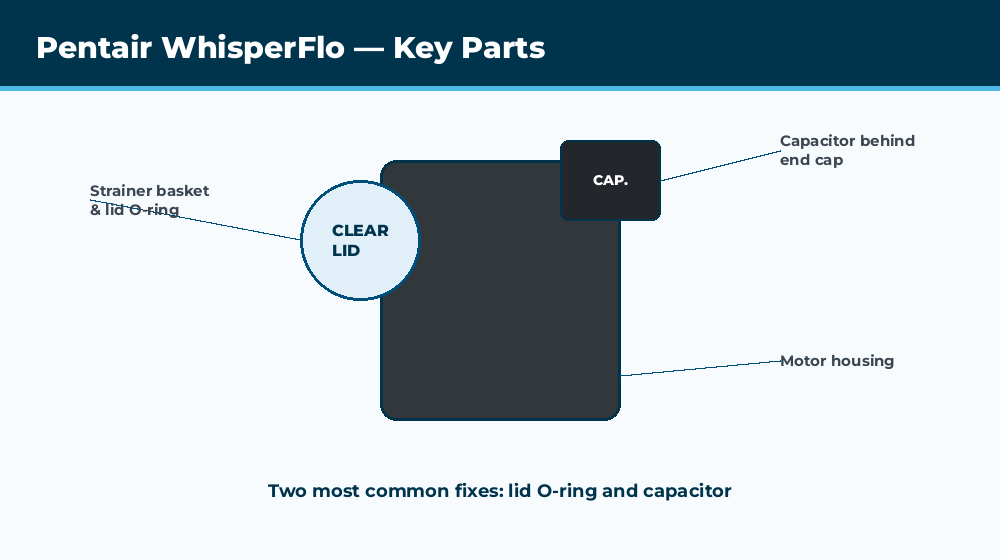

The WhisperFlo is Pentair’s high-performance single-speed pump line, distinct from the SuperFlo and IntelliFlo. When they fail, it’s almost always the capacitor (hums won’t start), the shaft seal (dripping at motor), or impeller debris (weak flow). The clear lid makes basket inspection easy — check it first on any flow complaint.
WhisperFlo vs SuperFlo vs IntelliFlo — Know Which You Have
Pentair makes three distinct pump lines and people mix them up constantly. The WhisperFlo is the original high-performance single-speed line — heavier-duty construction than the SuperFlo, known for being quieter at full speed. It has been in production since the 1990s in various revisions. If your pump has a clear lid, a permanent-magnet style motor badge, and no digital display, it’s a single-speed WhisperFlo. The WhisperFlo VS and VST are variable-speed versions with a digital control pad — those share drive electronics with the IntelliFlo line.
Step-by-step Pentair WhisperFlo motor replacement — covers the through-bolt disassembly and reassembly sequence.
Hums But Won’t Start — Capacitor
The single-speed WhisperFlo uses a standard run/start capacitor inside the motor end cap. A brief hum followed by silence (thermal cutout) is the capacitor about 85% of the time on these motors. Remove the 4 screws on the end cap, find the capacitor, match the µF rating, and replace. $10–18, 20 minutes. See our capacitor guide — the procedure is identical.
Shaft Seal Leak
Water dripping from the back of the wet end, below the motor, means the shaft seal has failed. The WhisperFlo uses a PS-1000 shaft seal on most models — the same seal used on many IntelliFlo units since they share the same wet end architecture. Run $16–24. See our shaft seal guide for the disassembly procedure.
Won’t Prime — Lid O-Ring and Air Leaks
The WhisperFlo’s clear lid uses a large O-ring that dries out and flattens after 2–3 seasons without lubrication. Lubricate with Magic Lube every spring. If the O-ring is fine and the pump still won’t prime, run the shaving cream test on every suction fitting. See the full priming guide.
Trips the Breaker Repeatedly
A WhisperFlo that trips the breaker on startup or after running a few minutes usually has a motor winding issue, moisture in the wiring compartment, or incorrect voltage configuration. Verify the terminal block jumpers match your voltage (115V or 230V) before assuming the motor has failed. Check for shaft seal moisture in the wiring compartment — water tracking into the motor from a failed seal is a common cause of breaker trips on these pumps.
Noise — Cavitation vs Bearings
A rumbling or groaning sound on a WhisperFlo usually means cavitation from a suction-side restriction — clogged basket, dirty filter, or undersized suction pipe. A high-pitched screeching or grinding sound means worn motor bearings, requiring motor replacement. See our cavitation guide and bearings guide to tell them apart.
Prevention
Lubricate the clear lid O-ring every spring — it’s the single highest-leverage maintenance task on a WhisperFlo. Clean the basket twice weekly during swim season. Check for shaft seal moisture monthly. WhisperFlo motors that get this basic care commonly run 12–15 years.
Frequently Asked Questions
Is the Pentair WhisperFlo a good pump?
Yes — it has a strong reputation for quiet, reliable operation and I’ve worked on units running 15+ years with basic maintenance. It’s a heavier-duty single-speed than most competitors in its price range.
Can I convert my WhisperFlo to variable speed?
Not by modifying the existing pump — you would need to replace it with a WhisperFlo VS/VST or a different VS pump entirely. The single-speed motor and the VS drive electronics aren’t interchangeable.
How do I know my WhisperFlo model number?
Check the label on the side of the motor or the wet end housing — it lists the model number, HP, voltage, and frame size. This is needed for ordering any replacement parts.
My WhisperFlo is leaking at the union, not the shaft seal — what do I check?
Union O-rings degrade over 3–5 seasons. Unscrew the union collar, inspect the O-ring for flat spots or cracks, replace if needed ($3–10), and reseat hand-tight.
What’s the difference between WhisperFlo and WhisperFlo VST?
The VST is the variable-speed version with a digital control pad and drive electronics, sharing technology with the IntelliFlo line. The standard WhisperFlo is single-speed with no digital display. See our VS pump troubleshooting guide for VST-specific issues.
