Many above-ground, Intex, Bestway, and entry-level pump models use a single status LED instead of a full digital display — solid green usually means running normally, flashing green often means priming or low-flow protection, and flashing or solid red typically indicates a fault condition like overheating or a blocked impeller. Always check your specific model’s manual since patterns vary by brand.
Why LED Indicators Exist on Simpler Pumps
Full digital displays with numeric error codes (like Pentair’s ERR 0001 system) are common on premium variable-speed pumps, but add cost that doesn’t make sense on budget and mid-range units. Many Intex, Bestway, and entry-level pumps instead use a single LED that changes color or blink pattern to communicate basic status — running, priming, fault — without the cost of a full display.
Diagnosing a Bestway Flowclear pump showing a flashing green LED status light and what the pattern indicates.

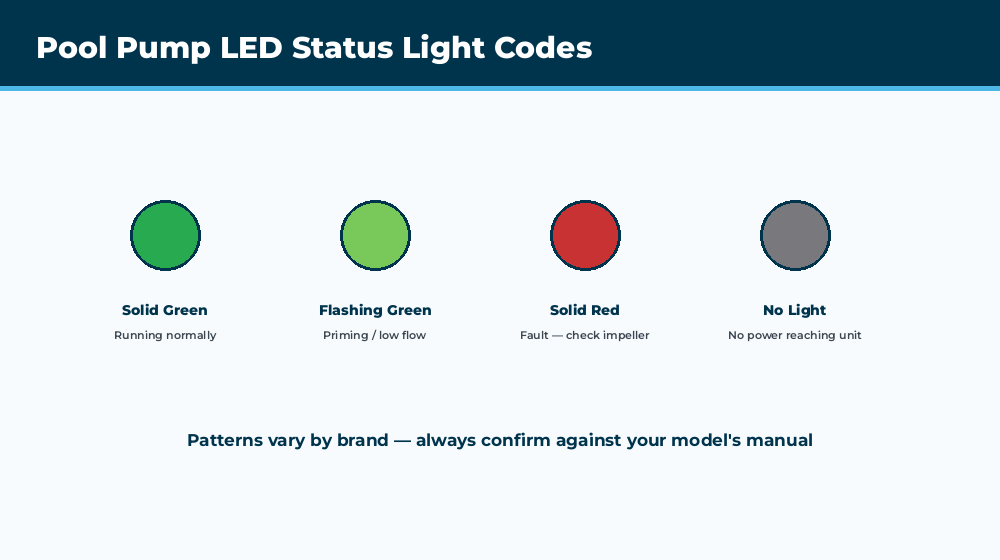

General LED Pattern Meanings
These patterns are common across many brands, though always check your specific model’s manual for exact confirmation since manufacturers don’t follow a universal standard:
- Solid green — running normally, no fault detected
- Slow flashing green — often indicates the pump is in a priming or startup cycle, normal during the first 1–2 minutes after power-on
- Fast flashing green — on some models, indicates low flow or a partial restriction — check the strainer basket and filter
- Solid red — fault condition, often overheating or motor protection triggered
- Flashing red — varies most by brand; commonly indicates a specific fault like blocked impeller, dry-run protection activated, or sensor fault
- No light at all — no power reaching the unit; check the outlet, GFCI, and cord before assuming the pump itself has failed
What to Do When You See a Red Light
Power off the unit and unplug it. Check the strainer basket and intake for debris — a blocked impeller is the most common cause of a fault light on small pumps. Check that the unit isn’t in direct sun causing overheating, and that it has adequate airflow around the housing. Restart after clearing any obstruction and allowing a few minutes to cool if overheating was suspected.
Flashing Green That Won’t Stop
If the green LED keeps flashing well beyond the normal startup window (more than 2–3 minutes), the pump likely isn’t achieving normal flow — check for a clogged intake, low water level, or an air lock in the housing similar to the priming issues covered in our priming guide, which applies in concept even to smaller package pumps.
Finding Your Specific Model’s LED Code Chart
Search your exact model number plus “LED indicator” or “status light meaning” — most manufacturers publish a quick-reference chart either in the printed manual or on their support website. If you no longer have the manual, the model number is usually printed directly on the pump housing or motor label.
Frequently Asked Questions
My Intex pump LED is flashing but the pump seems to be running fine — should I worry?
If water flow looks normal and the light is green (not red), it’s very likely a normal status indication rather than a fault. Consult your specific model’s manual to confirm, but green flashing patterns are rarely cause for concern on their own.
What does a solid red light mean on a pool pump?
Generally a fault condition has been detected and the pump has stopped or is protecting itself — commonly overheating or a blocked impeller. Power off, clear any obstruction, allow it to cool if overheating is suspected, and restart.
My pump has no LED light at all and won’t start — is the light broken or is power not reaching it?
Check power first — verify the outlet works (test with another device), check any GFCI reset button, and inspect the cord for damage. A completely dead LED alongside no pump operation almost always indicates a power supply problem rather than an LED-specific failure.
Do all pool pumps have an LED status light?
No — many basic single-speed pumps have no indicator light at all, just a simple on/off switch. LED status indicators are more common on pumps with electronic control boards, including most variable-speed units and many above-ground package pumps with built-in safety features.
Can I reset a pool pump fault light myself?
Yes, on most models — unplug the unit, address the underlying cause (clear debris, let it cool, check water level), and plug back in. Most fault conditions on simple LED-indicator pumps clear automatically once the triggering condition is resolved, without needing a special reset procedure.
