Quick Answer: Yes, especially for variable speed pumps — the VFD electronics inside a VS pump are far more surge-sensitive than an old single-speed motor, and a $50–150 surge protector is inexpensive insurance against a $600+ drive replacement. Single-speed pumps benefit too, but the risk and payoff are highest on VS models.
- Recommended For: Variable speed pumps especially, single-speed pumps as good practice
- Typical Cost: $50–150 for a dedicated pool equipment surge protector
- Install Location: Main panel and/or pool equipment sub-panel
- Difficulty: Electrician-installed
Surge protection is easy to skip right up until the first surge takes out a drive board. After that it’s an easy call. Given how much a VFD replacement costs on a modern variable speed pump, the math strongly favors adding protection up front.

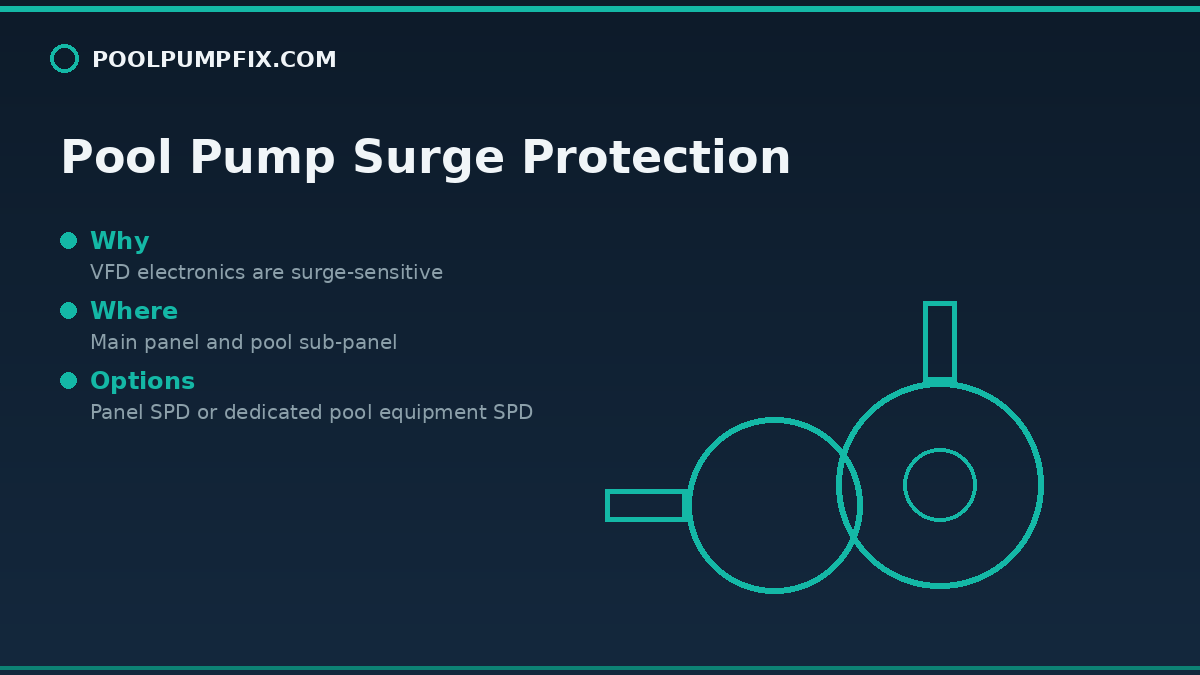

Why Pool Pumps Are Vulnerable
- Variable speed drives are electronics, not just a motor — the power module and control board inside a VS pump are considerably more sensitive to voltage spikes than a traditional single-speed motor winding.
- Outdoor equipment is exposed — pool pads sit outside, closer to potential lightning-induced surges traveling through the electrical system than most indoor appliances.
- Automation and salt systems compound the risk — a single surge event can take out the pump drive, automation board, and salt cell controller all at once if none of it is protected.
Where to Install Protection
- Main service panel: A whole-home surge protector here protects everything downstream, including the pool equipment, from surges entering through the utility feed.
- Pool equipment sub-panel: A second, dedicated device at the pool sub-panel adds protection against surges entering through outdoor wiring runs, which a main-panel device alone won’t fully catch.
- Dedicated pool equipment SPD: Products built specifically for pool and spa equipment, like the devices detailed in this pool electrical surge protection reference, are sized and rated for this specific use case.
How to Choose the Right Device
Type 1 vs Type 2
Type 1 devices are typically installed ahead of the main breaker; Type 2 devices install within the panel. Some pool-specific products are rated for both, giving flexibility depending on your panel setup.
Match It to Your Panel
Confirm with your electrician whether your panel has room for an integrated breaker/SPD combo unit or whether a separate surface-mounted device makes more sense for your installation.
When to Call a Professional
Surge protector installation involves working inside a live panel and should be done by a licensed electrician, who can also confirm your specific panel has room and the right bus configuration for the device you choose.
Prevention Tips
- Check the SPD’s indicator light periodically — most trip a breaker or show a warning light once they’ve absorbed a surge and need replacement.
- Don’t skip surge protection just because you have GFCI protection — they protect against different things.
- Consider protection at both the main panel and pool sub-panel for the most complete coverage.
FAQ
Will a surge protector stop a direct lightning strike?
No device can fully guarantee protection from a direct strike, but a properly installed SPD significantly reduces damage from the more common indirect surges traveling through utility lines.
Is surge protection worth it if I already have a warranty on my pump?
Most manufacturer warranties don’t cover surge/lightning damage, so a surge protector is a separate and worthwhile layer of protection regardless of warranty status.
